The Question Behind the Question

“What bevel angle should I use?”

I get this question weekly. And my answer usually annoys people:

“What does your WPS say?”

“I don’t know. Just tell me the standard angle.”

There is no “standard angle.” Cutting a 37.5° bevel because “that’s what everyone uses” is how you end up reworking joints or failing inspections.


Bevel Angle vs Included Angle: The Confusion That Costs Money

Before we go further, let’s clear this up—because I’ve seen $50,000 projects delayed over this simple misunderstanding.

Bevel angle vs included angle diagram Left: Bevel angle (single side). Right: Included angle (both sides combined)

TermDefinitionExample
Bevel AngleAngle on ONE side of the pipe37.5°
Included AngleTotal angle when two bevels meet75° (= 37.5° × 2)

The trap: A drawing says “75° groove.” You cut 75° on each side. Now your included angle is 150°. Inspector fails you.

The fix: Always clarify with the drawing owner: “Is this bevel angle or included angle?”


Why There Is No ‘Standard’ Angle

37.5° is common, not universal.

Different factors require different angles:

FactorImpact on Bevel Angle
Welding code (ASME, AWS, API)Sets acceptable ranges
Welding process (GTAW, SMAW, FCAW)Affects access requirements
Wall thicknessThicker walls may need compound bevels
Joint typeSingle-V, double-V, J-prep all differ
Filler metalSome electrodes need wider access
Position (horizontal, vertical, overhead)May require angle adjustment

The bevel angle in your finished joint must match what was qualified in your WPS. Not what someone told you. Not what you used on the last job.

Don’t know what bevel type to use? Read our guide: Pipe Bevel Types Guide


Code Requirements (Detailed)

Quick Reference Table

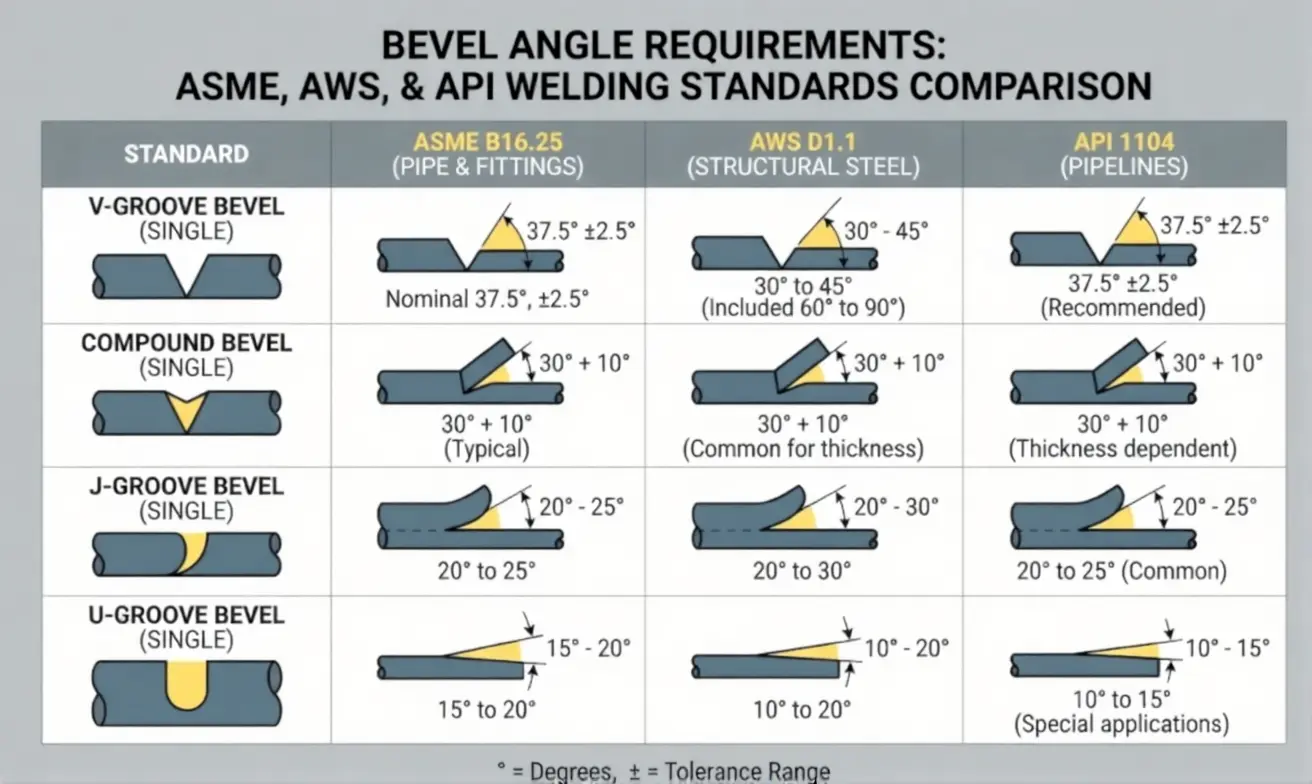

Code angle requirements chart Common bevel angle requirements by welding code

CodeStandard AngleToleranceRoot FaceNotes
ASME B31.3Per WPSPer WPSPer WPSReferences qualified procedures
ASME IXPer PQR± 5° max0-3mm typicalBeyond limits requires requalification
AWS D1.145° (CJP)± 5°0-3mmPrequalified joints
AWS D1.130° min± 5°-Some PJP applications
API 110430° ± 5°± 5°1.6mm ± 0.8mmPipeline work
API 110437.5° ± 2.5°± 2.5°1.6mm ± 0.8mmFacility piping

ASME B31.3 (Process Piping)

Doesn’t specify exact angles—refers to qualified welding procedures. Common preparations:

  • Standard wall (<15mm): 37.5° ± 2.5° single-V
  • Heavy wall (>15mm): Compound bevel or J-prep
  • Root face: Typically 1.5mm ± 0.5mm

ASME Section IX

Defines essential variables for procedure qualification. Critical point: Bevel angle changes beyond certain limits require requalification.

VariableLimit Before Requalification
Groove angle decrease>5°
Root opening decreaseAny decrease
Root face increase>1.5mm

AWS D1.1 (Structural Welding)

Provides prequalified joint details—meaning you can use them without separate procedure qualification:

AWS D1.1 prequalified joint details AWS D1.1 prequalified CJP groove weld joint details

  • CJP (Complete Joint Penetration): 45° typical, 60° included
  • PJP (Partial Joint Penetration): 30° minimum
  • Specific tolerances per joint type (see AWS D1.1 Table 3.4)

API 1104 (Pipeline Welding)

More specific than ASME—designed for cross-country pipeline construction:

ApplicationBevel AngleRoot FaceRoot Gap
Mainline pipe30° ± 5°1.6mm ± 0.8mm1.6mm ± 0.8mm
Tie-ins, facility37.5° ± 2.5°1.6mm ± 0.8mm1.6mm ± 0.8mm

The Real Answer

Check your project specification first. It should reference the applicable code AND the qualified WPS.


Angle Selection by Application

Not sure what angle your application needs? Here’s what I typically recommend:

By Industry

IndustryTypical AngleWhy
Oil & Gas pipelines30°API 1104 standard, minimal filler
Process piping37.5°ASME B31.3 common practice
Pressure vessels37.5° or J-prepASME VIII, depends on thickness
Structural steel45°AWS D1.1 prequalified
Power piping37.5°ASME B31.1 common practice
Pharmaceutical/sanitary37.5°Full penetration, clean root

By Wall Thickness

Wall ThicknessRecommended Approach
≤6mmSingle bevel, 30-37.5°
6-15mmV-groove, 37.5°
15-40mmConsider J-prep to save filler
>40mmCompound bevel or K-groove required

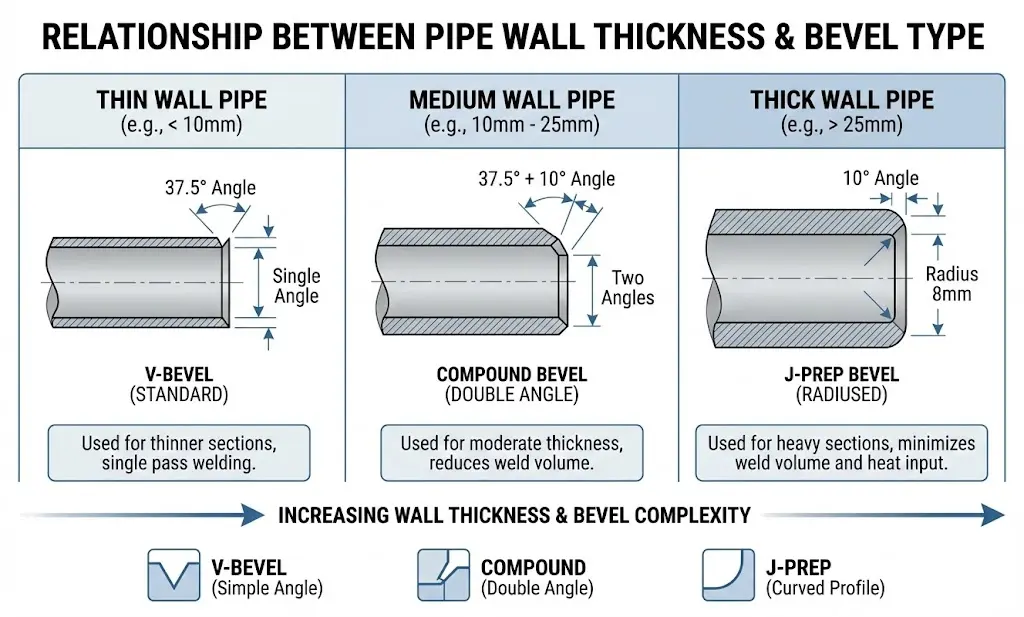

Wall thickness vs bevel angle chart Recommended bevel approach by wall thickness


Three Mistakes That Cause Rework

❌ Mistake 1: Ignoring the WPS

“We always use 37.5°.”

But your WPS for this project was qualified at 30°. Now you have bevels that don’t match the qualified procedure. The inspector fails your joints.

I’ve seen this happen: A fabrication shop lost a $200,000 contract because they cut 37.5° bevels on a pipeline job that specified 30° per API 1104. Every joint had to be reworked.

❌ Mistake 2: Confusing Included Angle vs Bevel Angle

Already covered above—but it’s so common I’ll repeat it:

  • Bevel angle: ONE side (e.g., 37.5°)
  • Included angle: BOTH sides combined (e.g., 75°)

Misreading this gives you bevels that are double or half what you need.

❌ Mistake 3: Cutting Without Checking Tolerances

Every code allows tolerances—typically ± 2.5° to ± 5°. But tolerances work BOTH ways.

If your WPS says 37.5° ± 2.5°, your acceptable range is 35° to 40°. Cut 34°? Fail. Cut 41°? Fail.


Root Face Matters Too

Bevel angle is only part of the geometry. Root face (land) matters equally—and it’s where most quality problems start.

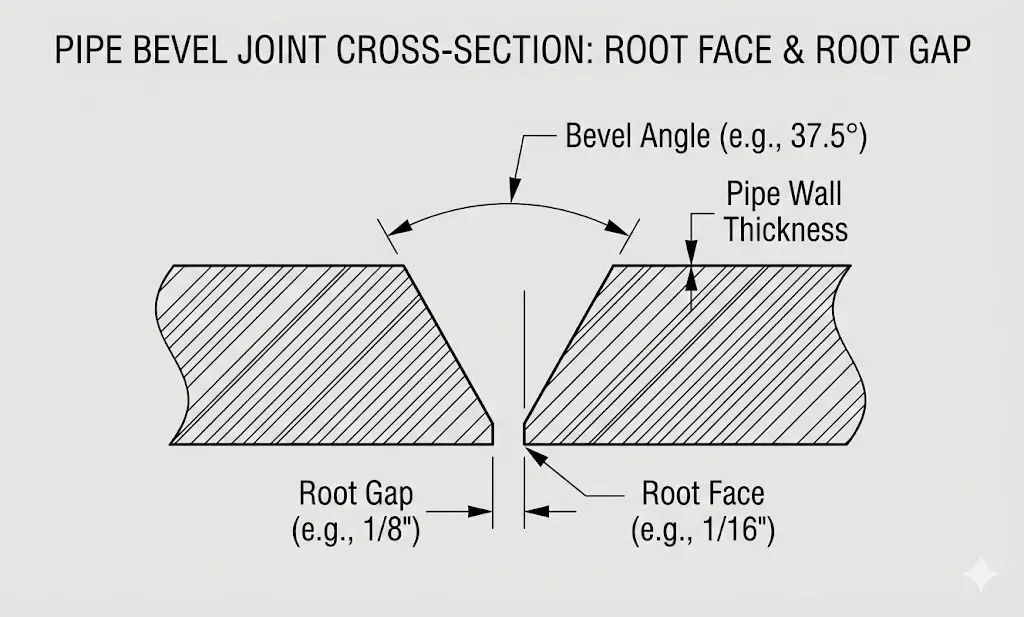

Root face and root gap diagram Root face (land) and root gap dimensions

Root Face IssueWelding ProblemResult
Too thick (>3mm)Incomplete root penetrationFailed RT/UT inspection
Too thin (<1mm)Burn-through, melt-throughRepair required
Uneven around circumferenceInconsistent penetrationQuality defects

Typical Root Face Requirements

ApplicationRoot FaceTolerance
GTAW root pass1.5mm± 0.5mm
SMAW root pass1.5-2.0mm± 0.8mm
API 11041.6mm± 0.8mm

My recommendation: If you’re doing critical work (pressure vessels, nuclear, subsea), aim for the middle of the tolerance range. Don’t push the limits.


Getting It Right

Before Cutting

  1. Get the WPS—if it doesn’t exist, get one created and qualified
  2. Read the drawing—confirm bevel angle AND root face
  3. Clarify terminology—included angle or bevel angle?
  4. Check tolerances—most codes allow ± 2.5° to ± 5°
  5. Verify material—different materials may require different preparation

In Production

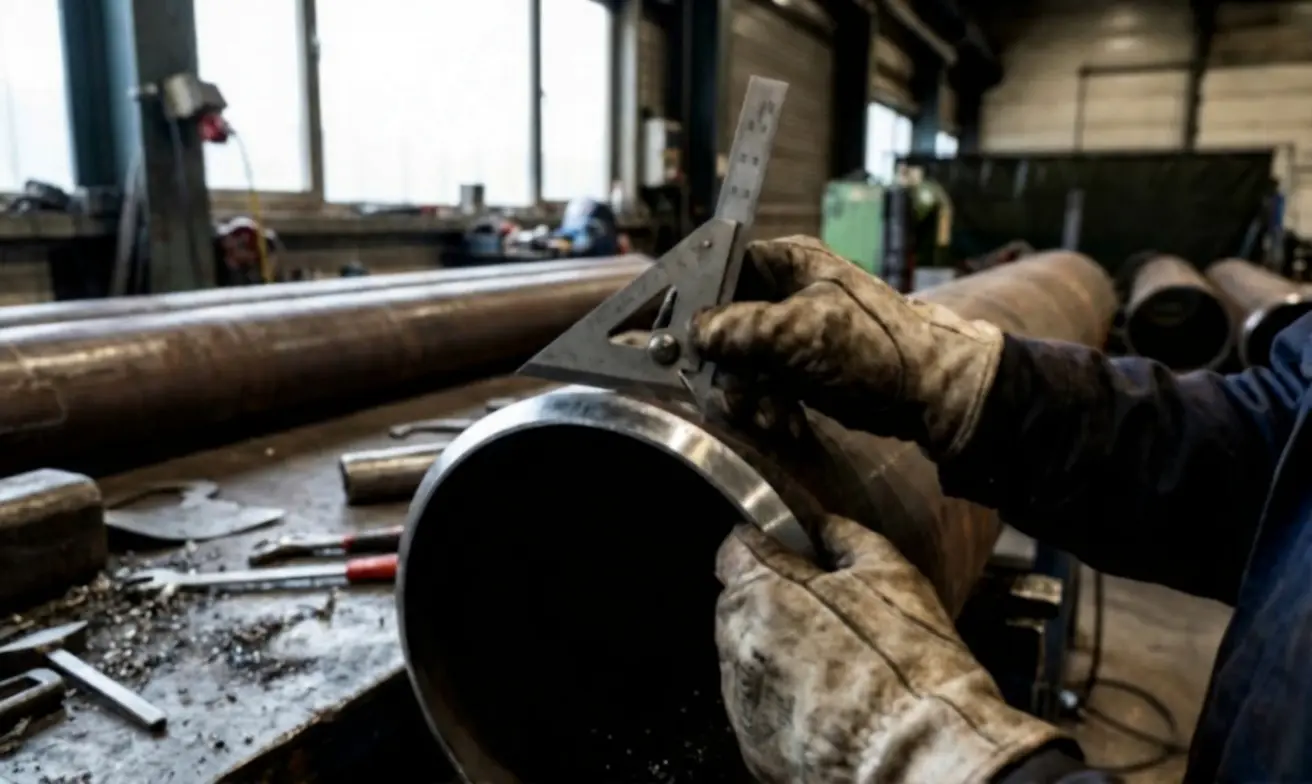

Bevel angle verification with gauge Verifying bevel angle with a gauge on a test cut

  1. Set machine to specified angle
  2. Make test cuts on scrap material first
  3. Verify with a bevel gauge—don’t trust machine settings alone
  4. Check at multiple points around circumference (12, 3, 6, 9 o’clock)
  5. Monitor tool wear—dull cutters drift from the set angle
  6. Document first article inspection

Quality Checklist

  • Bevel angle within tolerance (verified with gauge)
  • Root face within specification
  • Consistent around circumference
  • No gouges or irregularities
  • Surface finish acceptable for welding
  • No heat discoloration (if cold cutting required)

Equipment Angle Control

Good beveling machines offer adjustable angles, typically 0° to 60° or wider. For code work, you need equipment that holds ± 1° or better throughout the cut.

Angle Accuracy by Equipment Type

Equipment TypeTypical AccuracyBest For
CNC/stationary± 0.5°High-volume production
Portable electric± 1°Field work, shop flexibility
Pneumatic± 1-2°Hazardous areas
Manual/handheld± 2-3°Touch-ups, small jobs

Equipment Recommendations

For precision shop work: DCM Stationary Series — Consistent angle control with CNC precision, ideal for production runs where every bevel must be identical.

For portable field work: ISE-T Series — Adjustable angles with portable convenience. Our most popular choice for contractors.

For heavy wall J-prep: ISE-II Series — Heavy-duty design handles J-prep tooling for thick wall applications where compound bevels are required.

For thick wall pipe over 800mm: DMM-YG Series — Self-traveling milling for large diameter pipes where traditional clamping isn’t practical.


Summary

SituationWhat to Do
Don’t know the angleCheck your WPS first
No WPS existsGet one qualified before cutting
Drawing says “75°“Ask: bevel angle or included angle?
Code says ± toleranceAim for center of range
Root face unclearDefault to 1.5mm ± 0.5mm for GTAW root

Still not sure what angle you need?

Tell me your project details—code, material, wall thickness—and I’ll help you figure it out.

Bevel Types Complete Guide (Related Reading)
Browse Pipe Beveling Machines
Browse Plate Beveling Machines


This guide covers common situations. Critical applications (nuclear, subsea, aerospace) may have additional requirements—always verify with your welding engineer and QA team.
