Internal Expansion Pipe Beveling Machine - T Model
ID-Mounted Portable Beveler
- Pipe Range: 18-830mm
- Max Wall: ≤15mm
- Mount Type: ID Mount
- Best For: Standard pipe prep
Pipe Beveling Machines
Kedes provides professional pipe beveling machines for precision weld preparation. From portable bevelers to heavy-duty stationary systems, our equipment delivers consistent quality for pipes of all sizes. All machines are CE certified.
Need help with bevel specifications?
Quick Comparison
| Model | Pipe Range | Max Wall | Mount Type | Best For | Action |
|---|---|---|---|---|---|
| ISE T-Model Series | 18-830mm | ≤15mm | ID Mount | Standard pipe prep | Quote |
| ISE II-Model Series | 80-830mm | ≤75mm | ID Mount | Thick wall pipes | Quote |
| ISC Block Type Series | 25-114mm | ≤12mm | OD Mount | Small pipes with obstructions | Quote |
| Cam-Type Series | 14-114mm | ≤25mm | OD Mount | Quick setup, medium pipes | Quote |
| SOC Chuck Type Series | 50-610mm | ≤20mm | OD Mount | Self-centering precision | Quote |
| Split Frame Series | 89-1830mm | ≤110mm | Split Frame | In-situ pipeline work | Quote |
| SKF-150L Capless Beveler | 114mm (No Max) | ≤30mm | Specialty | Oversized pipes (no OD limit) | Quote |
| HDL Handheld Series | ≥200mm | ≤8mm | Handheld | Field repairs, light duty | Quote |
| DCM Stationary Series | 50-630mm | ≤50mm | Stationary | High-volume workshop | Quote |
| DMM-YG Large Pipe Milling Series | >800mm | - | Portable | - | Quote |
All Pipe Beveling Machines
Select a model to view detailed specifications

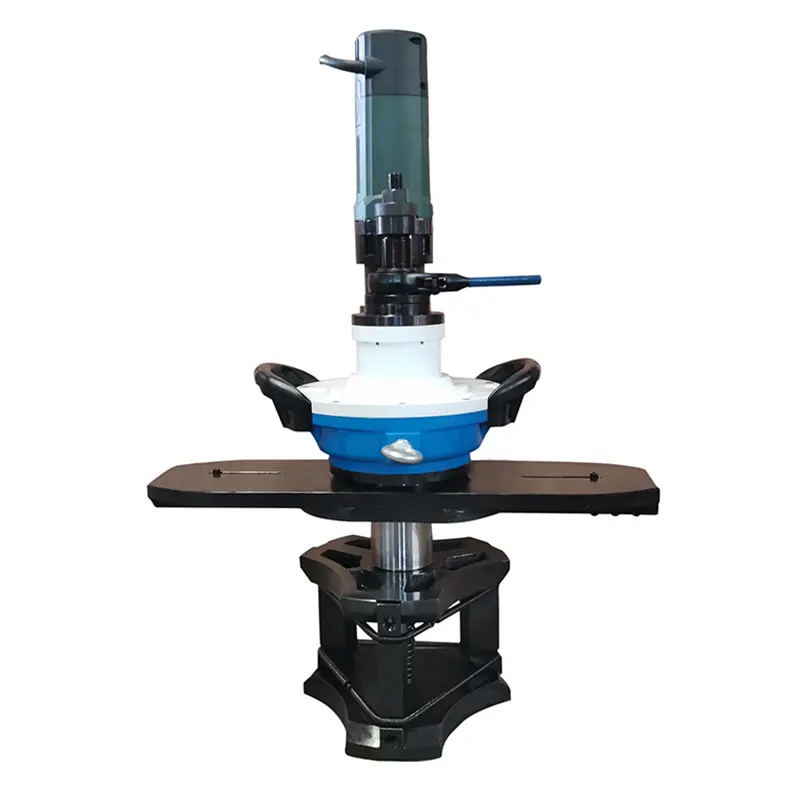

Internal Expansion Pipe Beveling Machine - II Model
Heavy-Duty ID-Mounted Beveler
- Pipe Range: 80-830mm
- Max Wall: ≤75mm
- Mount Type: ID Mount
- Best For: Thick wall pipes

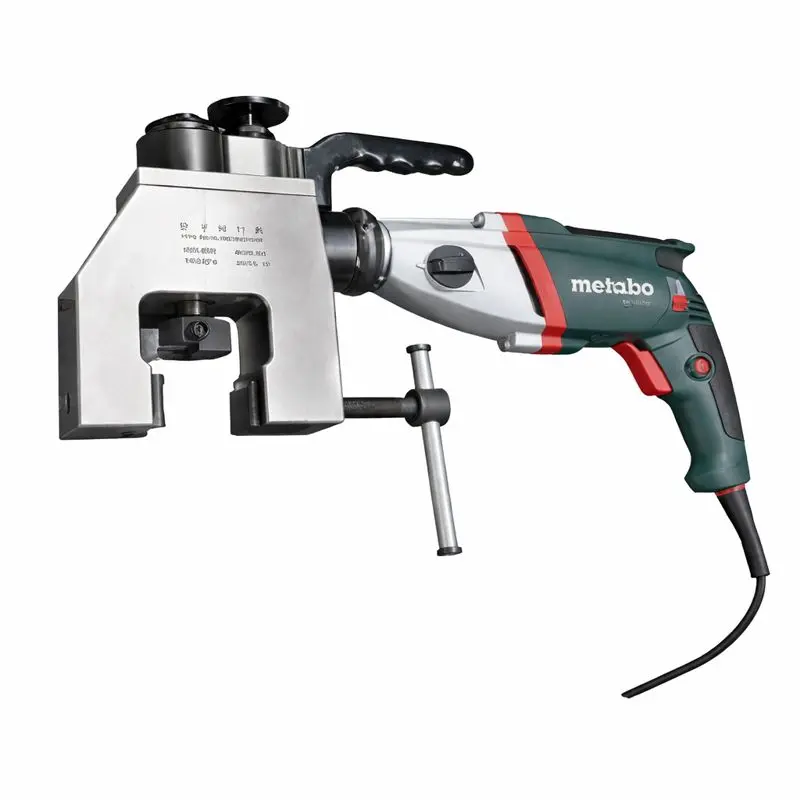

External Clamping Automatic Beveling Machine - Block Type
OD-Mounted Block Clamp Beveler
- Pipe Range: 25-114mm
- Max Wall: ≤12mm
- Mount Type: OD Mount
- Best For: Small pipes with obstructions

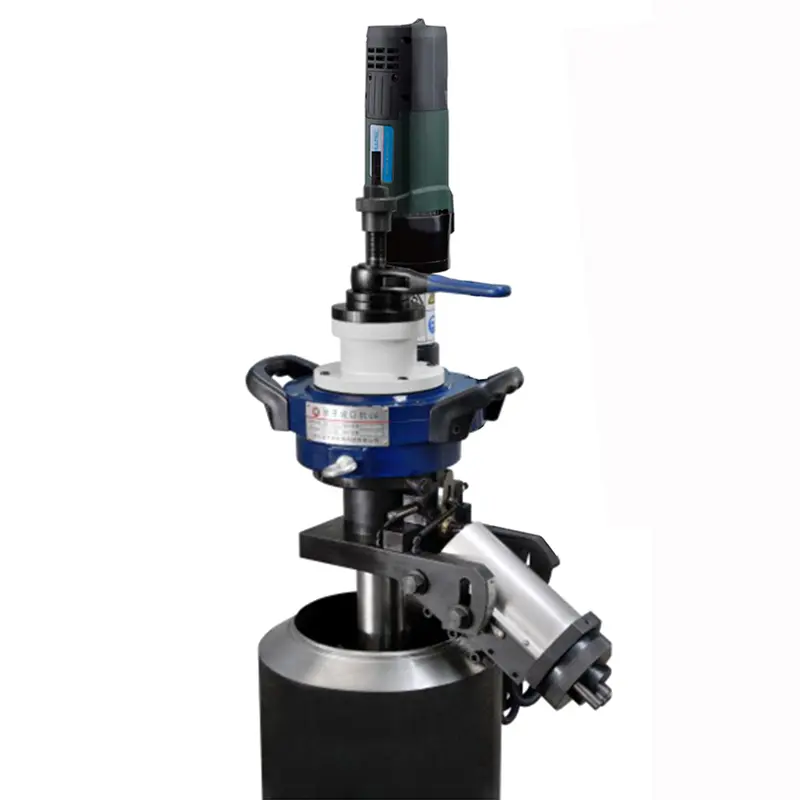

Cam-Type Self-Centering Beveling Machine
Quick-Clamp OD-Mounted Beveler
- Pipe Range: 14-114mm
- Max Wall: ≤25mm
- Mount Type: OD Mount
- Best For: Quick setup, medium pipes
4-Jaw Chuck Self-Centering Pipe Beveling Machine
OD-Mounted Chuck Beveler
- Pipe Range: 50-610mm
- Max Wall: ≤20mm
- Mount Type: OD Mount
- Best For: Self-centering precision
External Clamp Split Frame Pipe Beveling Machine
Pipeline Clamshell Cold Cutter
- Pipe Range: 89-1830mm
- Max Wall: ≤110mm
- Mount Type: Split Frame
- Best For: In-situ pipeline work

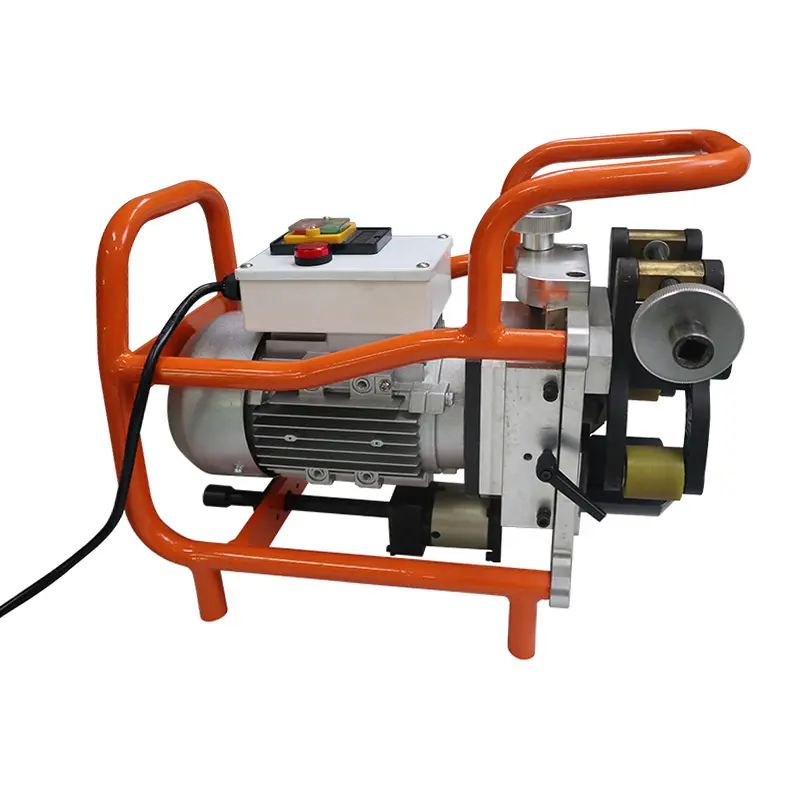

Capless Pipe & Plate Beveling Machine
Unlimited OD Range Beveler
- Pipe Range: 114mm (No Max)
- Max Wall: ≤30mm
- Mount Type: Specialty
- Best For: Oversized pipes (no OD limit)
Handheld Multi-Function Beveling Machine
Portable Multi-Surface Beveler
- Pipe Range: ≥200mm
- Max Wall: ≤8mm
- Mount Type: Handheld
- Best For: Field repairs, light duty
Desktop Pipe Cutting & Beveling Machine
Workshop Stationary Cold Cutter
- Pipe Range: 50-630mm
- Max Wall: ≤50mm
- Mount Type: Stationary
- Best For: High-volume workshop

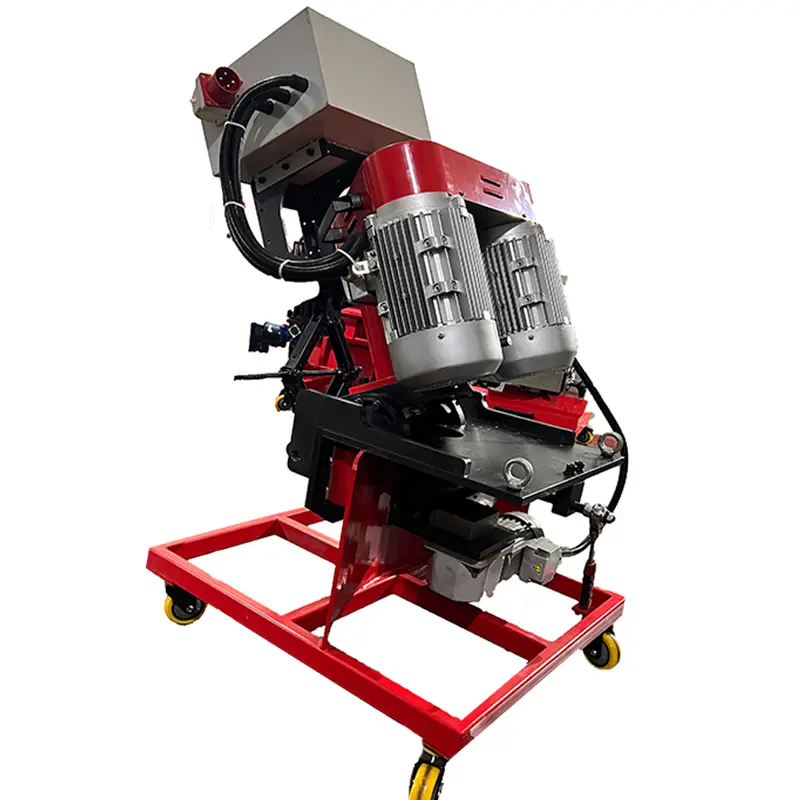

Large Pipe Edge Milling Machine
Large Diameter Pipe Beveler
- Pipe Range: >800mm
- Max Wall: -
- Mount Type: Portable
- Best For: -
How to Choose the Right Pipe Beveling Machine
Answer these questions to find your ideal machine
1. Is the pipe already installed?
Yes, in-situ pipeline work → You need a Split Frame machine. It clamps around the pipe without accessing the ends.
No, pipe can be moved → Continue to question 2.
2. Can you access the pipe end freely?
Yes, open end → Use ID-mount machines that expand inside the pipe. ISE T-Model for standard walls, ISE II-Model for thick walls (>15mm).
No, flange or fitting blocks access → Use OD-mount machines. ISC Block Type for small pipes, SOC Chuck Type for self-centering precision.
3. What's your production volume?
High volume (20+ bevels/day) → DCM Stationary machines are built for all-day workshop production.
Occasional field repairs → HDL Handheld offers maximum portability for light-duty work.
4. Special requirements?
Very large diameter (150mm+) → SKF Capless has no upper OD limit.
Quick setup needed → OCE Cam Type features rapid cam-actuated clamping.
Frequently Asked Questions
How do I choose the right pipe beveling machine?
Selection depends on pipe diameter range, required bevel angle, and portability needs. For field work, choose portable models. For workshop production, stationary machines offer better efficiency.
What is the typical delivery time?
Standard models ship within 3-5 business days. Custom configurations require 2-3 weeks. Expedited shipping available for urgent needs.
Do you provide technical support?
Yes, we offer installation guidance, operator training, and 24/7 technical hotline. All machines include manuals and video tutorials.
What certifications do your machines have?
All machines are CE certified and comply with ISO 9001 standards, approved for petrochemical, shipbuilding, and regulated industries.
Can you customize machines?
Yes, we offer OEM services including special pipe ranges, modified bevel angles, custom mounting, and branded packaging for distributors.
What maintenance is required?
Regular maintenance includes daily cleaning, weekly lubrication, and periodic tool inspection. We provide maintenance kits and genuine spare parts.
