Overview
The Cam-Type Series delivers the fastest setup time of any portable pipe beveling machine. Its innovative cam-lever mechanism centers and clamps in one smooth action—no block changes, no screw adjustments, just position and clamp. Perfect for contractors and fabricators who value speed without sacrificing quality.
Key Advantages
- One-action clamping - Fastest setup time in the industry (5-10 seconds)
- Self-centering - Automatic alignment to any pipe size within range
- Lightweight aluminum - Easy handling at only 13-18kg
- Variable speed - Adaptable to different materials and thicknesses
The Cam-Lever Advantage
Traditional OD clamps require multiple steps: position, adjust screws, check centering, re-adjust. Cam-Type simplifies to one step: position machine, flip cam lever — done.
Speed Comparison
| Machine Type | Setup Time | Best For |
|---|---|---|
| Cam-Type | 5-10 sec | High volume, varied sizes |
| ISC Block | 30-60 sec | Repetitive single size |
| SOC Chuck | 15-25 sec | Larger pipes, mixed sizes |
Which Model Should You Choose?
For HVAC, plumbing, and light mechanical (under 63mm OD):
The SCB/SCP-63 is perfect for mechanical contractors working primarily with 1/2”-2” pipes. At just 13kg, it’s easy to carry between floors and job sites. Handles 90% of commercial plumbing and HVAC work.
For process piping and larger installations (57-114mm OD):
Choose the SCB/SCP-114 for industrial facilities, fire protection systems, and general fabrication. The broader range means one machine covers 2”-4” pipes without switching.
Not sure which size?
If your work spans both ranges frequently, having both models maximizes efficiency—use the lighter 63 for small pipes, the 114 for larger work. Many contractors find this two-model approach ideal.

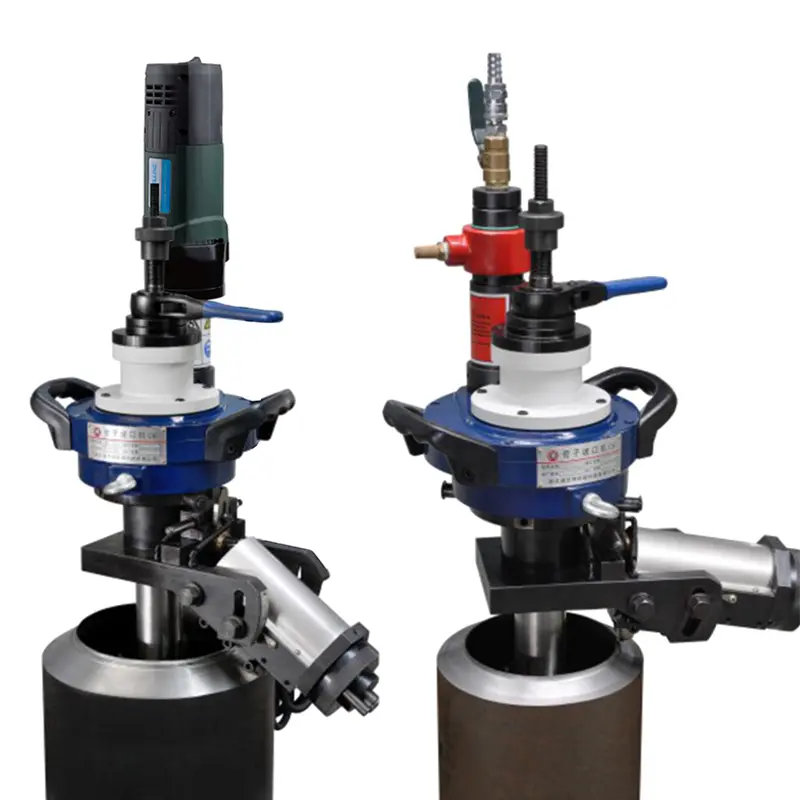

Drive Options
| Drive Code | Type | Best For |
|---|---|---|
| SCB | Electric (220V) | Normal workshop, accessible power |
| SCP | Pneumatic | Outdoor, hazardous areas, marine |
Technical Highlights
Variable Speed (30-120 r/min)
- High speed (100-120): Thin wall carbon steel
- Medium speed (60-90): Standard wall, stainless
- Low speed (30-50): Thick wall, tough alloys
Aluminum Construction
- High-strength alloy body
- 40% lighter than steel equivalents
- Corrosion resistant
Customization Options
- Bevel Angle — Standard angles (30°, 45°), custom angles on request
- Drive System — Electric (SCB) or pneumatic (SCP) options
- Voltage — 220V/50Hz standard, other configurations available
- Tooling — Spare cutter inserts and heavy-duty blades available
