Watch the lightweight HDL Series bevel pipes with one-hand operation
Overview

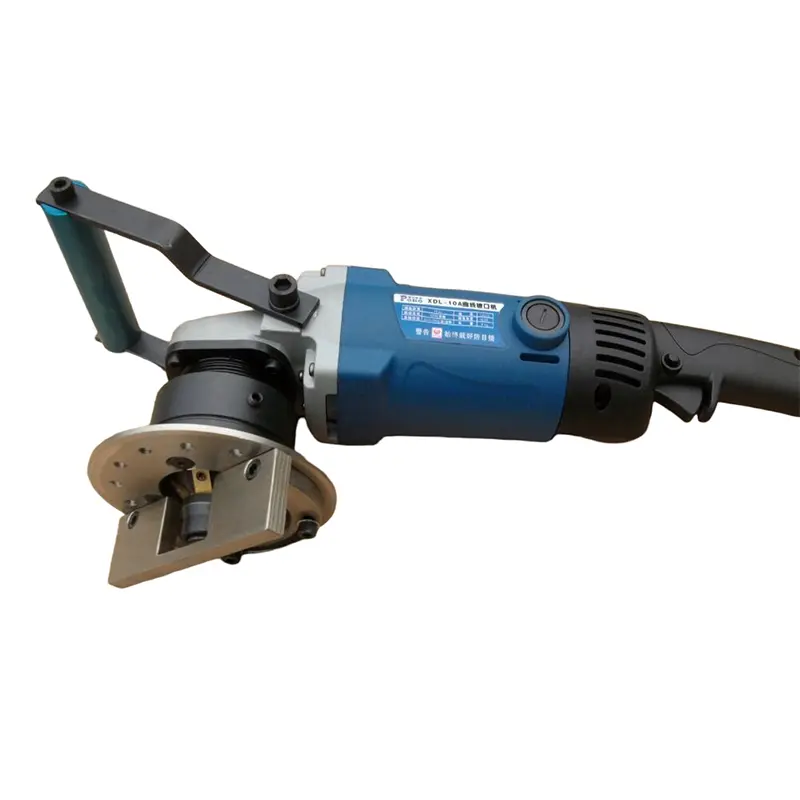

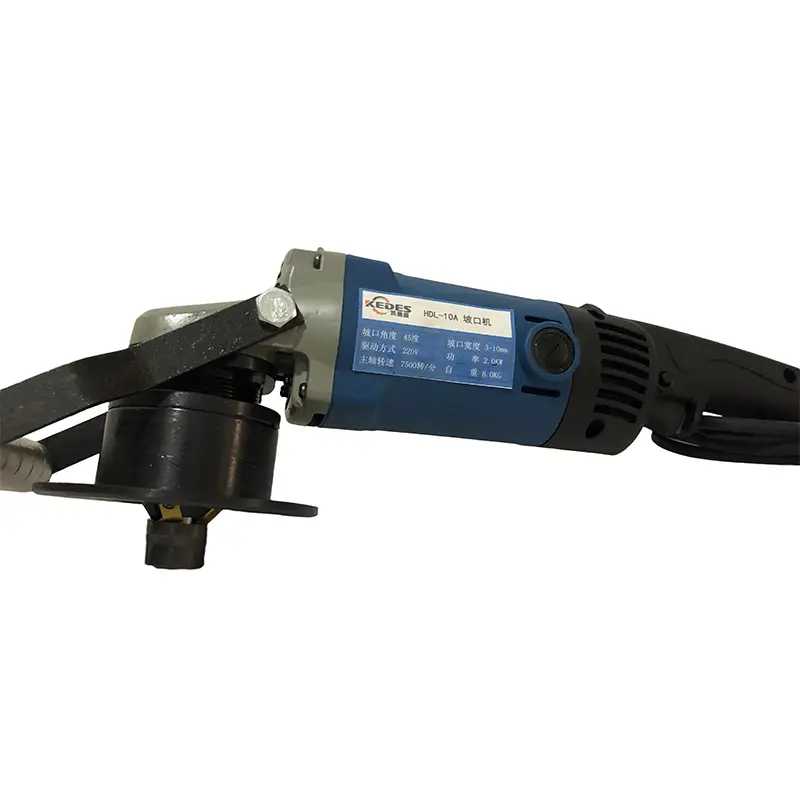

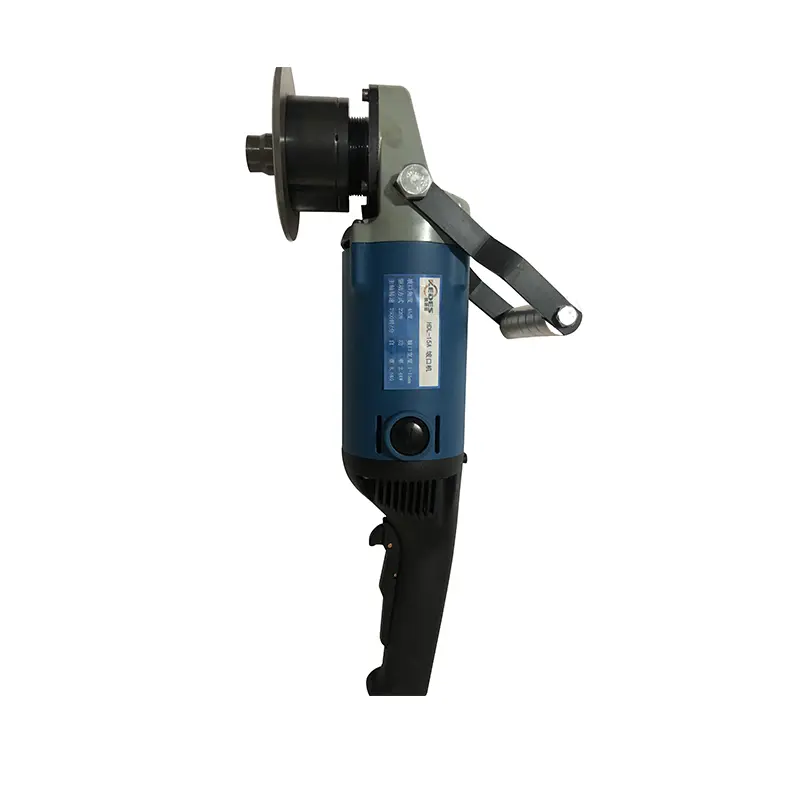

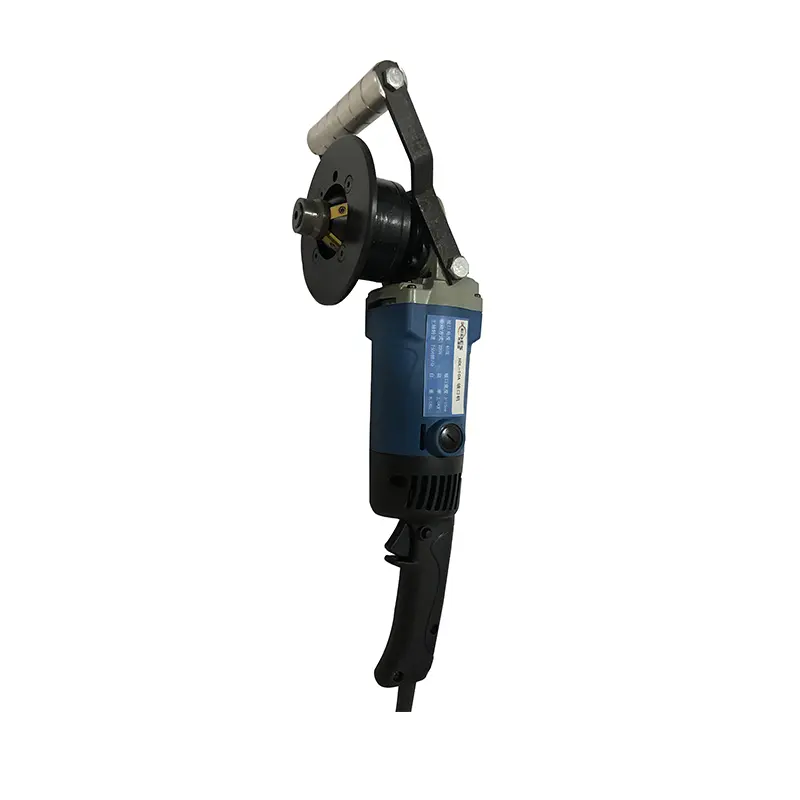

The HDL Handheld Series brings professional beveling capability to a portable, ergonomic package. Unlike fixed-mount machines that require bringing the workpiece to the tool, HDL machines go to the work—beveling straight edges, curved surfaces, and hole cutouts with equal ease.
Key Advantages
- 3-in-1 capability - Straight edges, curves, and holes with one machine
- Truly portable - At just 7kg, go anywhere the work is
- Standard angle options - 30°, 45°, or 60° covers most weld prep needs
- Cold process - Safe for stainless and sensitive environments
Multi-Surface Versatility
Traditional beveling machines specialize in one workpiece type. HDL machines handle them all:
| Surface Type | Capability |
|---|---|
| Straight plate edges | ✓ Full length beveling |
| Curved plates | ✓ Follow any contour |
| Circular holes | ✓ Nozzle and manway prep |
| Rectangular cutouts | ✓ Access panels, ports |
| Irregular shapes | ✓ Custom fabrication |
Technical Specifications
| Specification | HDL-10A | HDL-15A |
|---|---|---|
| Bevel Width | 1-10mm | 1-15mm |
| Bevel Angles | 30° / 45° / 60° | 30° / 45° / 60° |
| Motor Power | 2000W | 2400W |
| Weight | 7kg | 7kg |
→ View full specifications and model comparison
Operating Principle
- Select cutter with desired bevel angle (30°, 45°, or 60°)
- Adjust cutting depth for required bevel width
- Position machine on workpiece edge
- Guide along edge—machine cuts as you move
- Complete bevel in single pass for most applications
Ideal Applications
When to choose HDL over fixed machines:
- Workpiece too large to move
- Multiple scattered bevel locations
- Hole and cutout beveling
- Field repair work
- Mixed straight and curved edges
- Quick touch-up beveling
Customization Options
- Bevel Angle — Fixed cutter angles (30°, 45°, 60°), specify when ordering
- Voltage — 220V/50Hz standard, other configurations on request
- Blade Configuration — Carbide inserts optimized for mild steel, stainless, or aluminum
