Watch the versatile SKF-150L bevel both pipes and plates with quick changeover
Overview

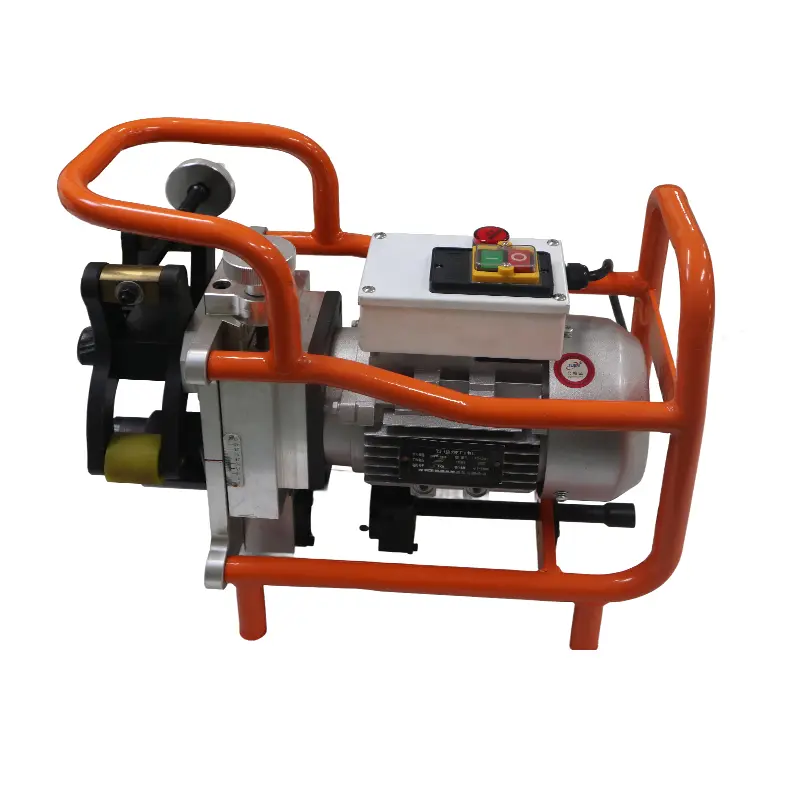

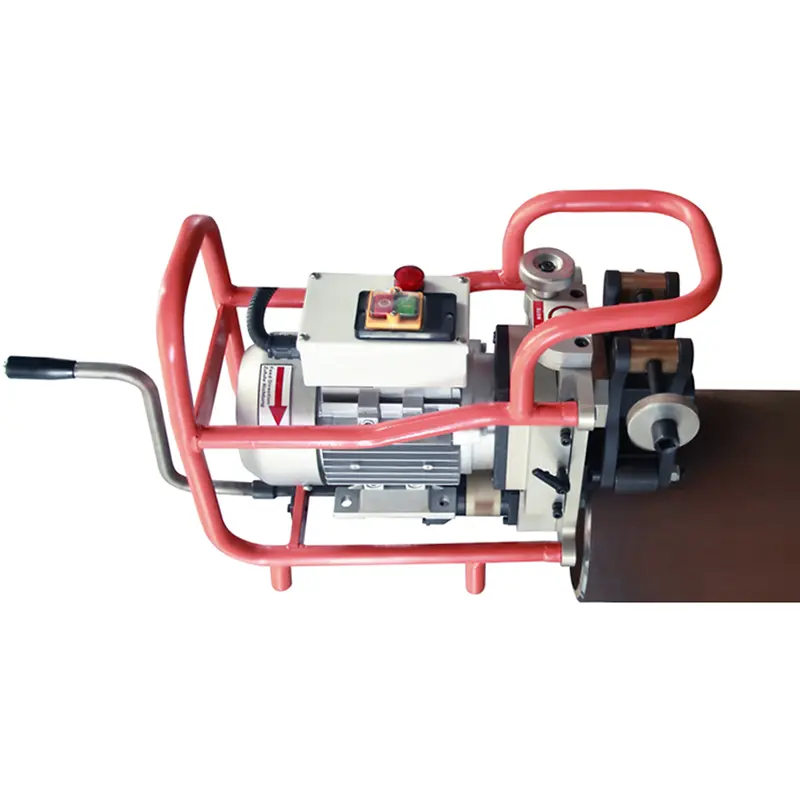

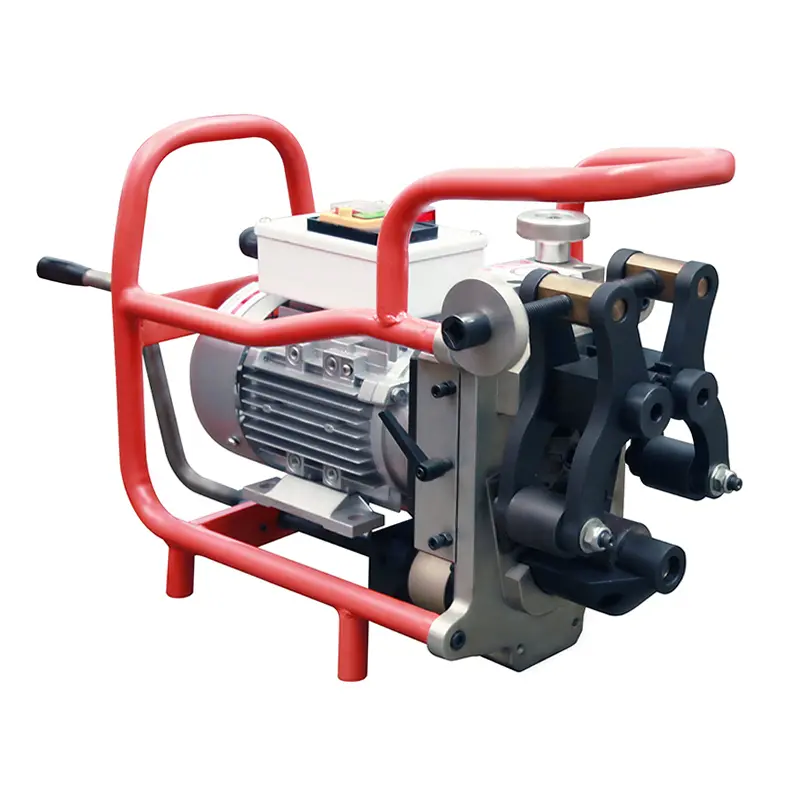

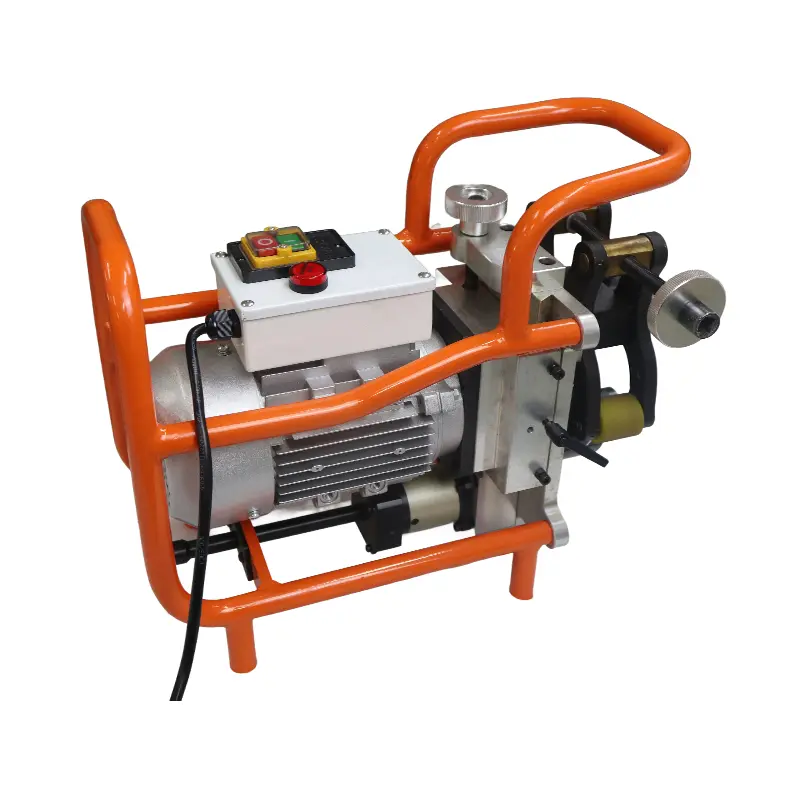

The SKF-150L Capless Beveler solves a fundamental problem: traditional pipe beveling machines have maximum diameter limits dictated by their clamping mechanism. The SKF-150L doesn’t clamp around the pipe—it rides along the edge, making pipe diameter irrelevant. From 114mm OD to massive storage tanks, plus flat and curved plates, one machine does it all.
Key Advantages
- No diameter limit - Works on any pipe from 114mm OD to unlimited size
- Dual purpose - Bevels both pipes and plates with one machine
- Self-propelled - Automatic travel along workpiece edge
- Portable - Only 35kg, easily transported to any job site
The “Capless” Concept

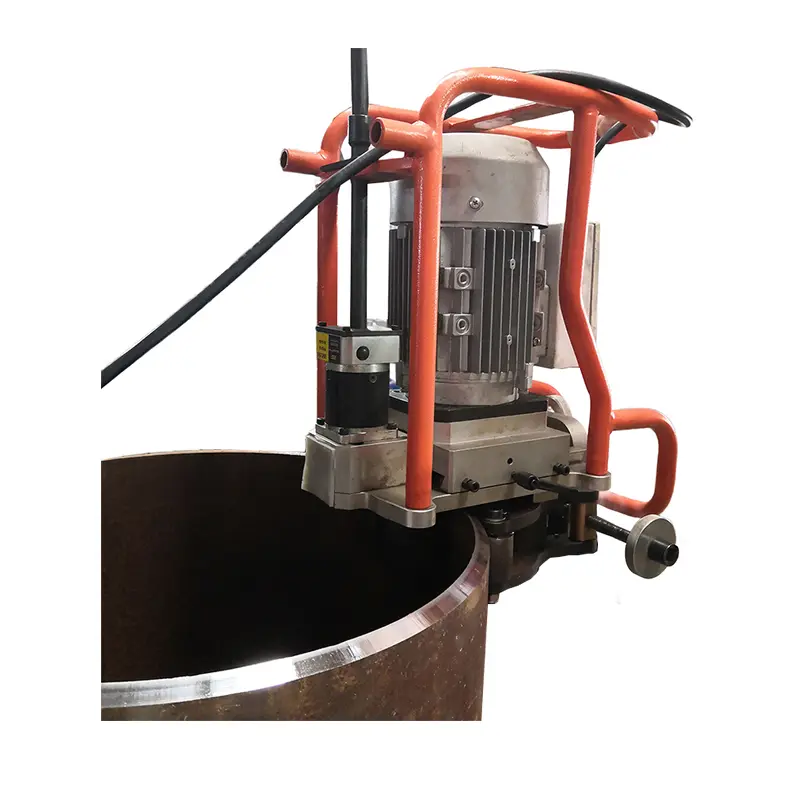

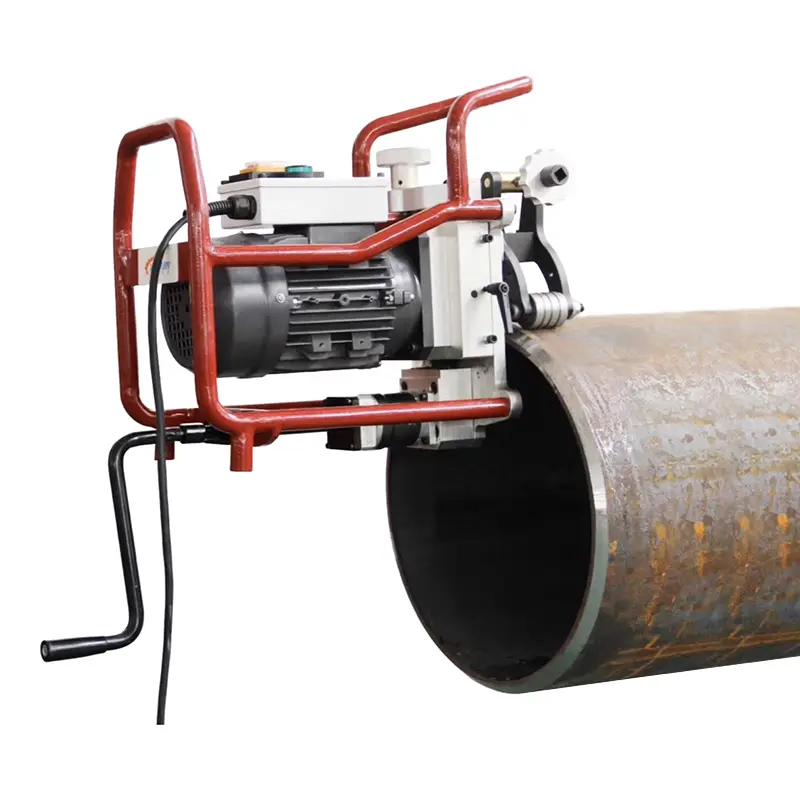

Traditional machines clamp around the pipe, limiting maximum diameter to the ring size. The SKF-150L rides on the surface with guide rollers—no ring, no limit. The machine simply follows the edge regardless of diameter.
Workpiece Capabilities
| Workpiece Type | Capability |
|---|---|
| Large pipes | OD ≥114mm, unlimited maximum |
| Flat plates | 5-25mm thickness |
| Curved plates | 5-25mm thickness |
| Tank shells | Any diameter |
| Cones/tapers | Tapered sections |
Bevel Specifications
| Parameter | Specification |
|---|---|
| Bevel Width | 1-20mm |
| Bevel Angles | 30°, 37.5°, 45° |
| Bevel Types | K, V, Y, X |
| Surface Finish | Ra 3.2-6.3 |
Operating Principle
- Position machine at starting point on pipe or plate edge
- Adjust bevel angle and depth settings
- Start motor and engage drive
- Guide machine along the edge (self-propelled)
- Complete bevel in continuous pass
Comparison with Other Solutions
| Approach | Max Size | Setup | Weight |
|---|---|---|---|
| Split Frame | 1830mm | Moderate | Heavy |
| SOC Chuck | 610mm | Fast | Medium |
| SKF-150L | Unlimited | Simple | 35kg |
Customization Options
- Bevel Angle — Standard 37.5° included, 30° and 45° insert sets available
- Voltage — 220V/50Hz standard, other configurations available
- Tooling — Spare insert packs and extended guide arm available
- Accessories — Dust collection adapter for indoor use
