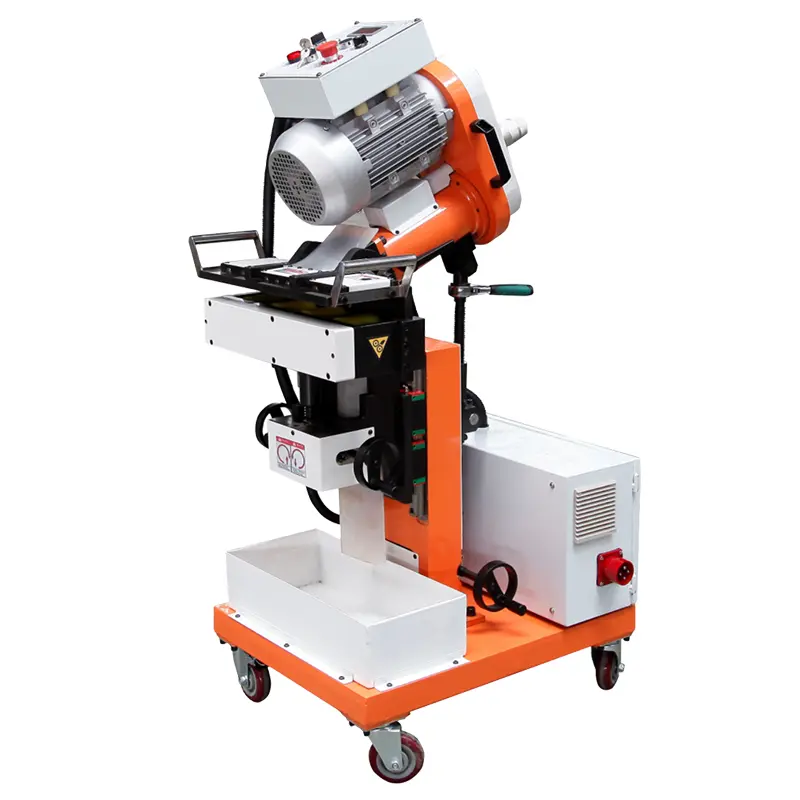

GL Series Automatic Traveling Plate Edge Milling Machine
Compact Self-Propelled Plate Beveler
- Plate Thickness: 4-80mm
- Max Plate: ≤80mm
- Technology: Traveling Milling
- Best For: Compact, workshop use
Plate Beveling Machines
Kedes provides professional plate beveling machines for precision weld preparation on metal plates. From handheld portable units to heavy-duty track-mounted systems, our equipment delivers consistent bevels on plates of all thicknesses. All machines are CE certified.
Need help with bevel specifications?
Quick Comparison
| Model | Plate Thickness | Max Plate | Technology | Best For | Action |
|---|---|---|---|---|---|
| GL Plate Beveler Series | 4-80mm | ≤80mm | Traveling Milling | Compact, workshop use | Quote |
| KBM Rolling Shear Series | 3-25mm | ≤45mm | Rolling Shear | Fast processing, thin plates | Quote |
| SKF-15 Handheld Series | 3-18mm | ≤18mm | Handheld | Field work, curved edges | Quote |
| DMM Traveling Milling Series | 5-100mm | ≤100mm | Traveling Milling | Production line, self-propelled | Quote |
| Flip Type Series | 6-80mm | ≤80mm | Flip Type | Double-sided beveling | Quote |
| Dual-Side Series | 5-60mm | ≤60mm | Dual-Side Milling | Simultaneous top & bottom | Quote |
| Dual Spindle Series | 5-80mm | ≤80mm | Dual Spindle | Maximum throughput | Quote |
| DZ Benchtop Series | 1.5-50mm | ≤50mm | Benchtop | Workshop, portable | Quote |
| Feed-Through Series | 2-40mm | ≤40mm | Feed-Through | Production, high volume | Quote |
All Plate Beveling Machines
Select a model to view detailed specifications
Rolling Shear Plate Beveling Machine
Low-Noise Shear Beveler
- Plate Thickness: 3-25mm
- Max Plate: ≤45mm
- Technology: Rolling Shear
- Best For: Fast processing, thin plates

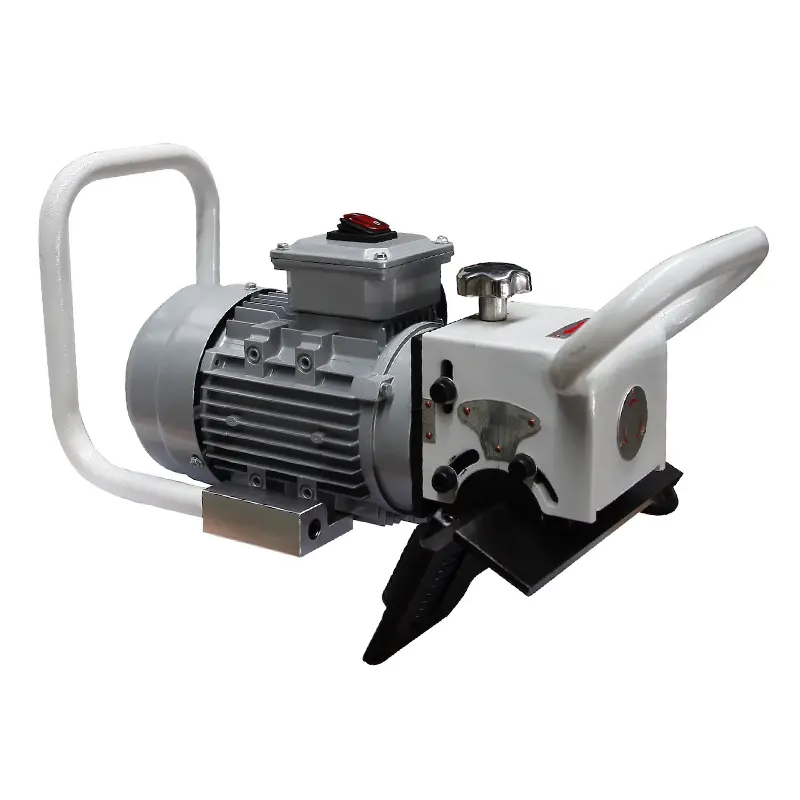

Handheld Plate Beveling Machine
Ultra-Portable Plate Beveler
- Plate Thickness: 3-18mm
- Max Plate: ≤18mm
- Technology: Handheld
- Best For: Field work, curved edges
DMM Series Heavy-Duty Automatic Traveling Plate Edge Milling Machine
Industrial Self-Propelled Plate Beveler
- Plate Thickness: 5-100mm
- Max Plate: ≤100mm
- Technology: Traveling Milling
- Best For: Production line, self-propelled
Automatic Flip-Type Plate Beveling Machine
Flip Up/Down for Double-Sided Beveling
- Plate Thickness: 6-80mm
- Max Plate: ≤80mm
- Technology: Flip Type
- Best For: Double-sided beveling

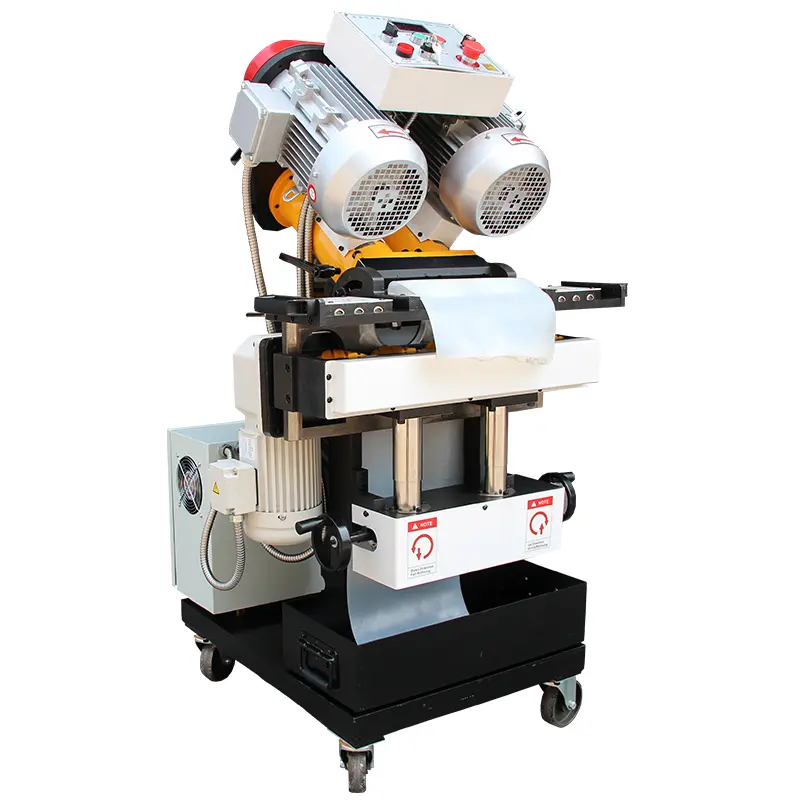

Automatic Double-Sided Plate Beveling Machine
Simultaneous Top & Bottom Edge Beveling
- Plate Thickness: 5-60mm
- Max Plate: ≤60mm
- Technology: Dual-Side Milling
- Best For: Simultaneous top & bottom
Automatic Dual-Spindle Plate Beveling Machine
Twin Cutters for Maximum Throughput
- Plate Thickness: 5-80mm
- Max Plate: ≤80mm
- Technology: Dual Spindle
- Best For: Maximum throughput

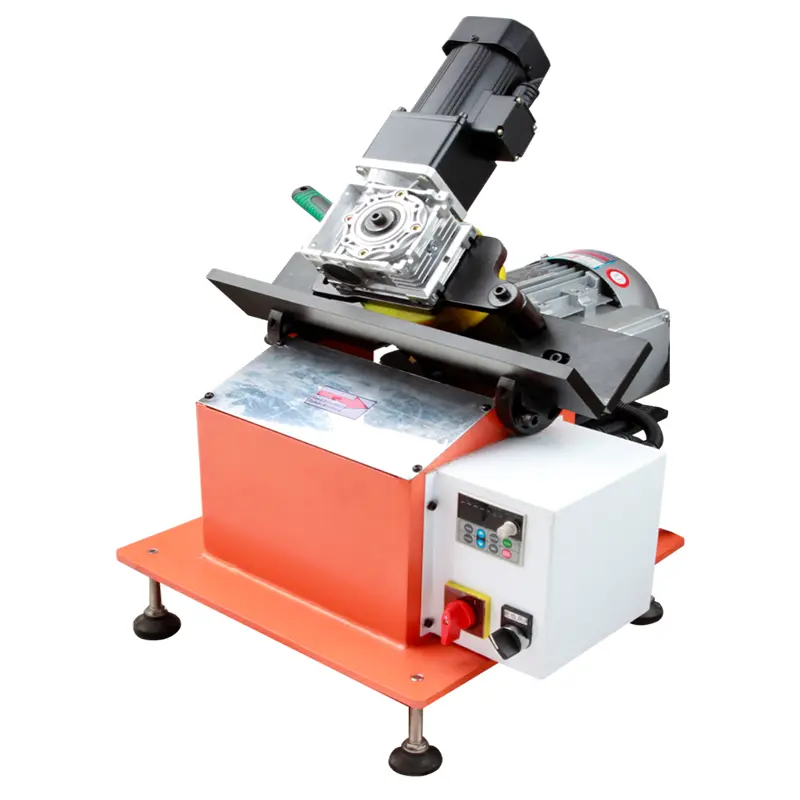

DZ Benchtop Plate Beveling Machine
Compact Workshop Plate Beveler
- Plate Thickness: 1.5-50mm
- Max Plate: ≤50mm
- Technology: Benchtop
- Best For: Workshop, portable

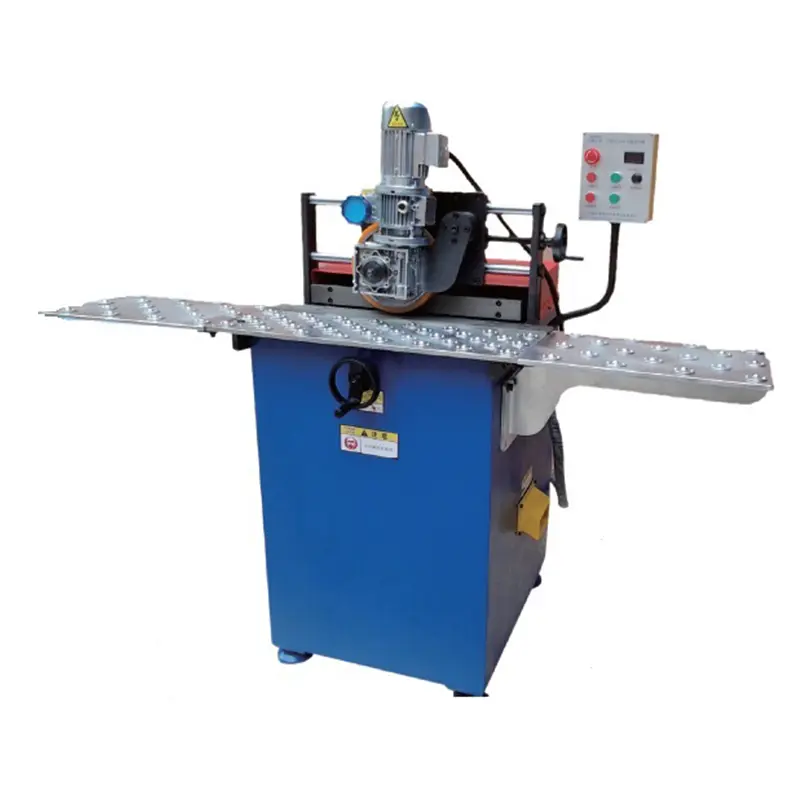

Automatic Feed-Through Plate Beveling Machine
Continuous Feed Plate Beveler
- Plate Thickness: 2-40mm
- Max Plate: ≤40mm
- Technology: Feed-Through
- Best For: Production, high volume
How to Choose the Right Plate Beveling Machine
Answer these questions to find your ideal machine
1. What's your plate thickness?
Thin plates (≤16mm) → KBM Rolling Shear is fastest. Or SKF Handheld for field work.
Medium plates (16-30mm) → DZ Benchtop for workshops, GL Plate Beveler for large plates.
Heavy plates (30-60mm) → DMM-90X Flip Type handles thick plates with high-volume capability.
2. What's your edge type?
Long straight edges → GL Plate Beveler self-propels along the edge for consistent results.
Curved edges or short sections → SKF Handheld offers maximum flexibility.
3. Do you need code-quality edges?
Yes, pressure vessels or structural → Choose milling machines (DZ, GL, DMM) for smooth, consistent surfaces.
No, general fabrication → Rolling Shear is faster and more economical.
4. Need high throughput?
Production environments → DMM-900X Dual Spindle maximizes throughput with twin cutters.
Simultaneous top & bottom → DMM-1232 Dual-Side bevels both sides in one pass.
Frequently Asked Questions
What is a plate beveling machine used for?
Plate beveling machines prepare metal plate edges for welding by creating angled cuts (bevels). This improves weld penetration, joint strength, and meets code requirements for structural welding.
How do I choose between portable and stationary models?
Portable machines offer flexibility for on-site work and various plate sizes. Stationary machines provide higher precision and throughput for production environments.
Can plate bevelers handle different materials?
Yes, our machines process carbon steel, stainless steel, aluminum, and alloy steels. Speed and feed settings are adjusted based on material hardness.
What bevel angles are possible?
Most models achieve 15° to 60° bevels. Some machines offer additional configurations for compound bevels and K-preps.
Is operator training required?
Basic operation is straightforward, but we provide training for optimal results. Most operators achieve proficiency within a few hours of hands-on practice.
What maintenance do plate bevelers need?
Regular maintenance includes cutter replacement, bearing lubrication, and track cleaning. We provide maintenance schedules and spare parts with each machine.
