See the DMM-1232 bevel top and bottom plate edges simultaneously in one pass
Overview

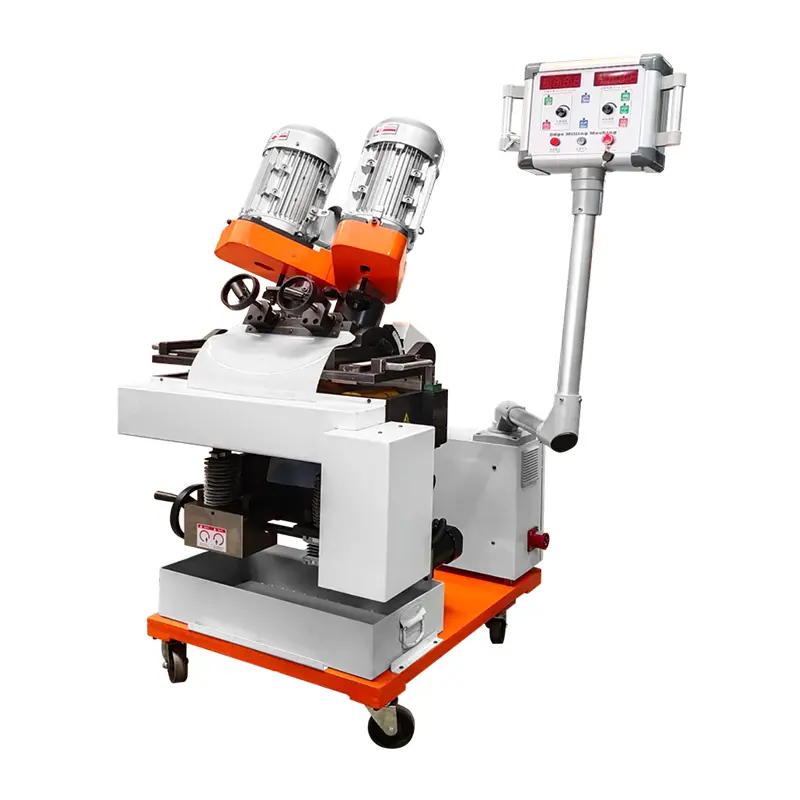

The DMM-1232 Dual-Side Beveling Machine is a specialized high-productivity solution for double-sided weld preparations. By beveling both top and bottom plate edges simultaneously, it eliminates the need for plate flipping and secondary passes—cutting processing time in half while ensuring perfectly matched opposing bevels.
Key Advantages
- Simultaneous dual-side beveling — Both edges processed in one pass
- Double productivity — 50% time savings on X-groove and K-groove preparations
- Perfect alignment — Opposing bevels cut together for consistent fit-up
- Heavy-duty 420kg frame — Stable operation with dual cutting heads
- Adjustable angles — Top 0-60°, bottom 0-45° for flexible configurations
Technical Specifications
| Parameter | Specification |
|---|---|
| Clamp Thickness | 5-60mm |
| Top Bevel Angle | 0-60° |
| Bottom Bevel Angle | 0-45° |
| Single Bevel Width | 15mm per side |
| Max Bevel Width | 50mm per side |
| Total Power | 7500W (2×3000W) |
| Feed Speed | 0-1500 mm/min |
| Net Weight | 420kg |
| Motor Voltage | AC 380V 50Hz |
When to Choose DMM-1232
| Situation | Why DMM-1232 |
|---|---|
| K-groove or X-groove required | Processes both sides simultaneously |
| High-volume production | 50% time savings per plate |
| Consistent weld quality critical | Matched bevels ensure penetration |
| Labor cost reduction | One machine, one operator, both edges |
Customization Options
This machine can be tailored to your specific requirements:
- Bevel Angle — Custom cutter angles manufactured to match your welding specifications
- Capacity Range — Thickness range adjustable for your specific material requirements
- Drive System — Choose electric, pneumatic, or hydraulic based on your facility needs
Contact our engineering team to discuss your customization requirements.
