Overview

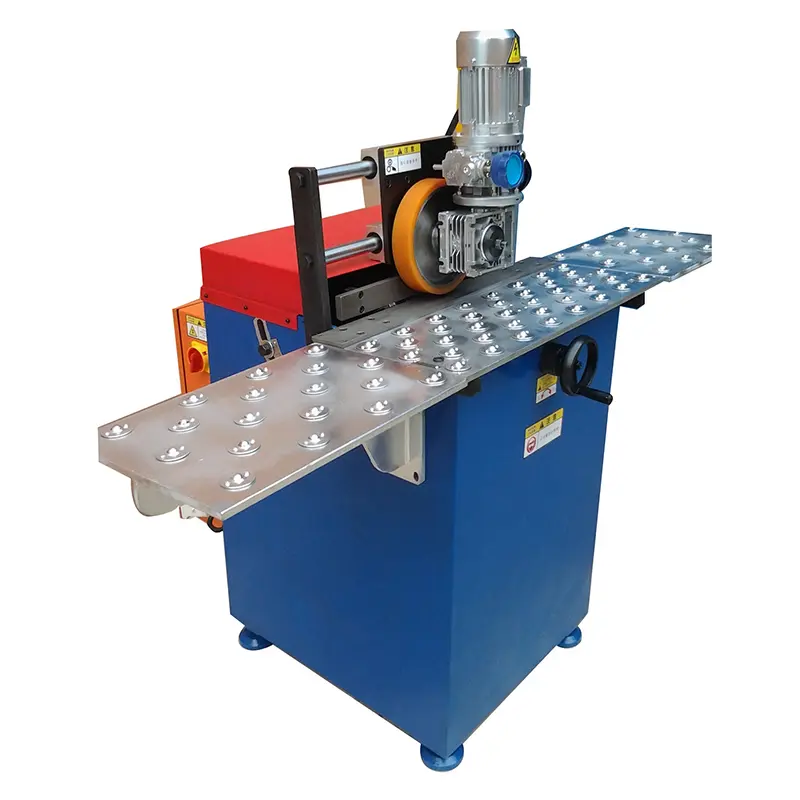

The DMM-20D Feed-Through Beveling Machine is designed for production environments where throughput matters. Plates pass continuously through the machine at 0.6-3.3m/min—no stopping to reposition, no manual handling between cuts. At 4.75kW and 550kg, it’s built for sustained high-volume operation.
Key Advantages
- Continuous feed processing — Plates pass through without stopping
- Variable speed — 0.6-3.3m/min adjustable for optimal results
- Production-oriented — Built for high-volume environments
- Large worktable — 1000×350mm supports various plate sizes
- Cold milling — No heat-affected zone
Technical Specifications
| Parameter | Specification |
|---|---|
| Clamp Thickness | 2-40mm |
| Bevel Angle | 15°-60° |
| Feed Speed | 0.6-3.3 m/min |
| Worktable Size | 1000×350mm |
| Total Power | 4750W |
| Net Weight | 550kg |
| Motor Voltage | AC 380V 50Hz |
When to Choose DMM-20D
| Situation | Why DMM-20D |
|---|---|
| High production volume | Continuous feed maximizes throughput |
| Consistent plate sizes | Optimized for repeated processing |
| Stationary installation | 550kg for permanent production setup |
| Speed priority | Up to 3.3m/min feed rate |
Customization Options
This machine can be tailored to your specific requirements:
- Bevel Angle — Custom cutter angles manufactured to match your welding specifications
- Capacity Range — Thickness range adjustable for your specific material requirements
- Drive System — Choose electric, pneumatic, or hydraulic based on your facility needs
Contact our engineering team to discuss your customization requirements.
