Watch the DMM-90X flip mechanism bevel both plate edges without repositioning
Overview

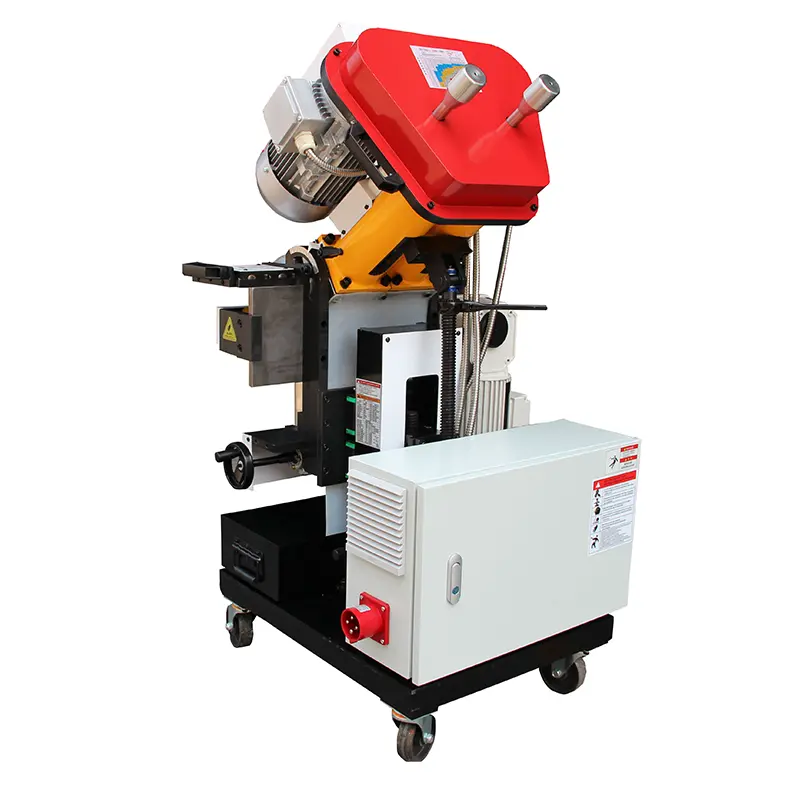

The DMM-90X Flip Type Beveling Machine solves the double-sided bevel challenge with an innovative 180° rotating cutting head. Instead of flipping heavy plates or using two machines, simply flip the cutting head to process both top and bottom edges from the same position.
Key Advantages
- 180° flip mechanism — Bevel top, flip, bevel bottom—no plate repositioning
- 50% setup time savings — Complete double-sided preps in half the time
- ±60° angle range — Symmetric or asymmetric bevel configurations
- Electric clamping — Powered system for consistent holding and quick changeover
- Compact 250kg design — Lighter than dual-spindle alternatives
Technical Specifications
| Parameter | Specification |
|---|---|
| Clamp Thickness | 6-80mm |
| Bevel Angle | 0° ~ ±60° |
| Bevel Width (at 37.5°) | 0-70mm |
| Single Bevel Width | 0-20mm |
| Total Power | 6520W |
| Cutting Power | 2×3000W |
| Feed Power | 400W |
| Clamping | Electric |
| Net Weight | 250kg |
When to Choose DMM-90X
| Situation | Why DMM-90X |
|---|---|
| K-groove or X-groove required | Flip to bevel both sides |
| Limited floor space | One machine handles both edges |
| Moderate production volume | Good balance of speed and investment |
| Varying plate sizes | Flip mechanism works on any plate length |
Customization Options
This machine can be tailored to your specific requirements:
- Bevel Angle — Custom cutter angles manufactured to match your welding specifications
- Capacity Range — Thickness range adjustable for your specific material requirements
- Drive System — Choose electric, pneumatic, or hydraulic based on your facility needs
Contact our engineering team to discuss your customization requirements.
