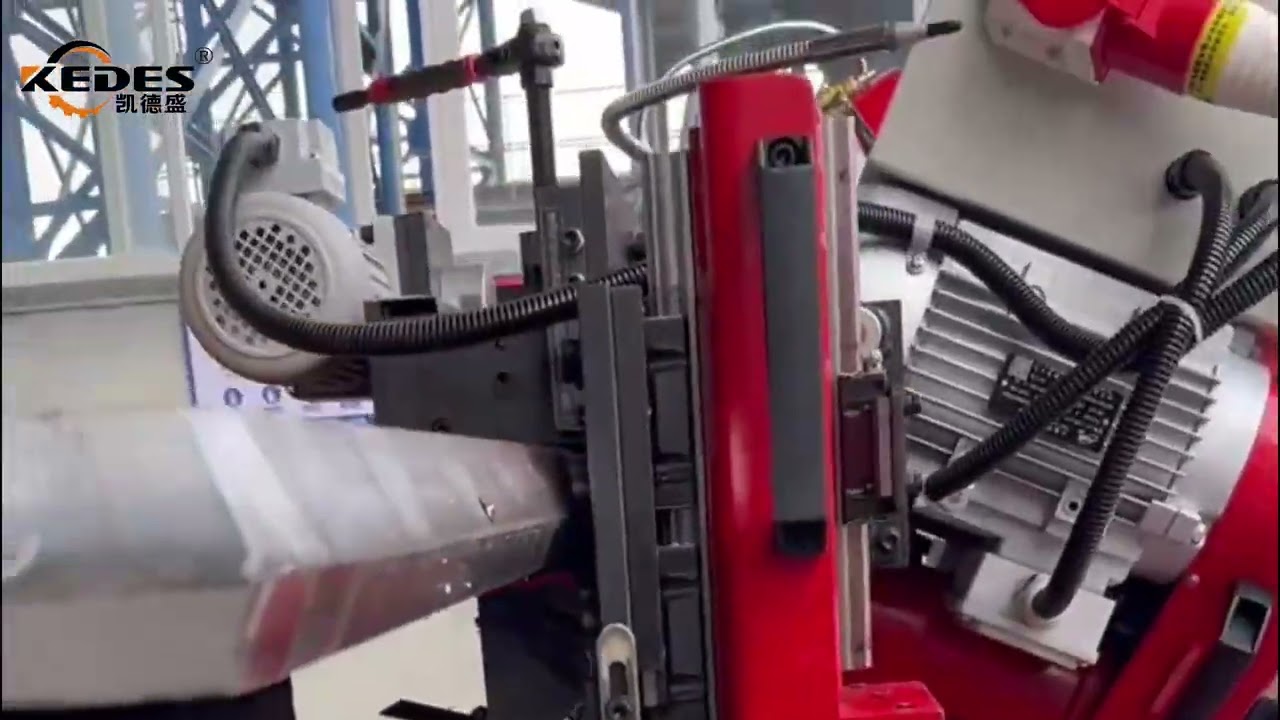

Watch the DMM Traveling Milling Series perform automatic edge beveling on heavy plates
Overview

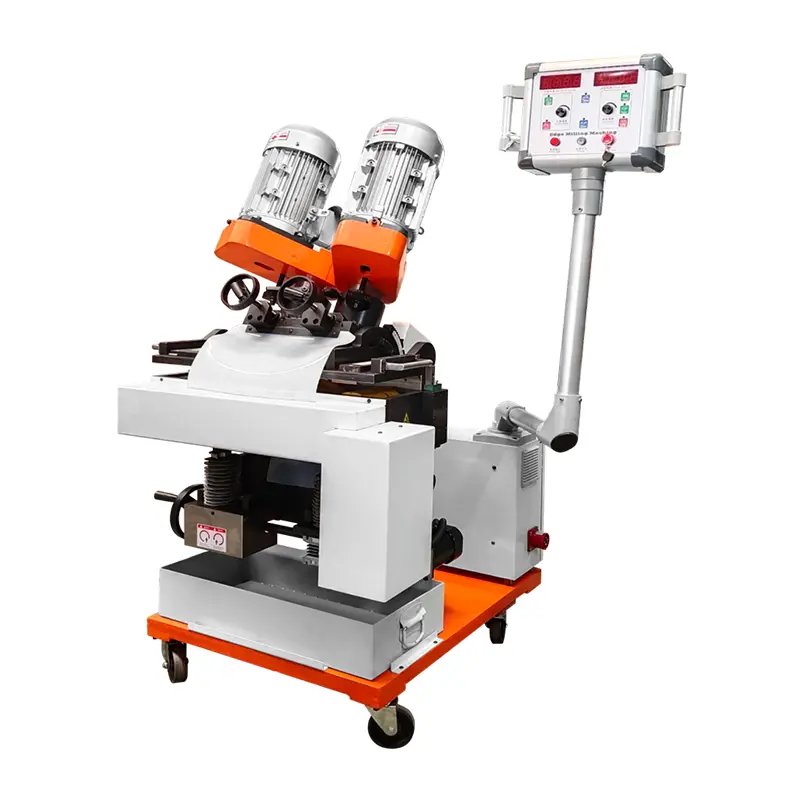

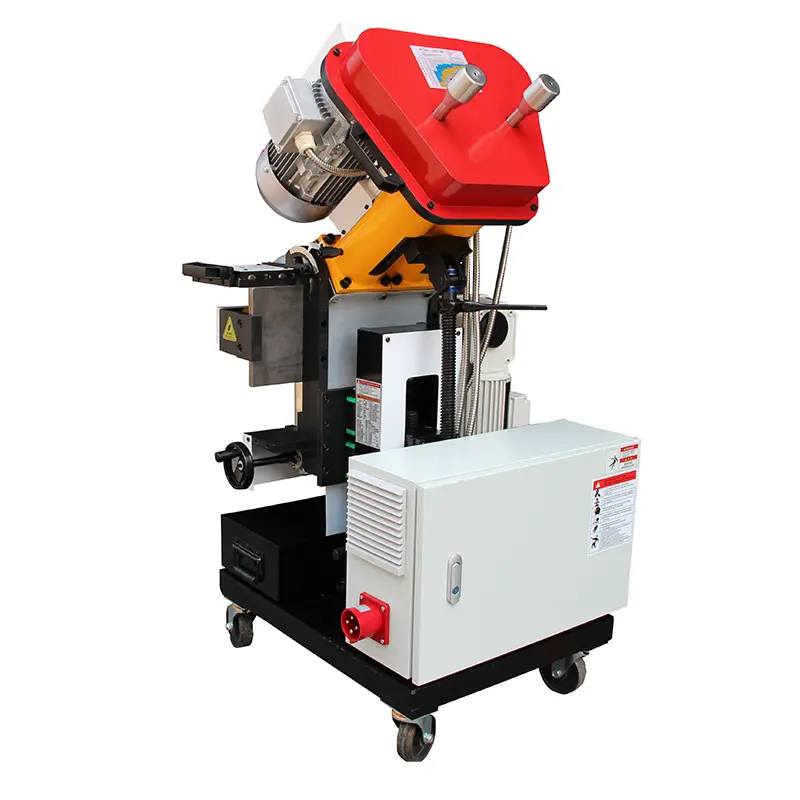

The DMM Traveling Milling Series delivers industrial-grade plate beveling for production environments where throughput and reliability matter. At 300-450kg, these machines are built for continuous operation on plates from 5mm to 100mm thick—the workhorses of shipyards, pressure vessel shops, and heavy fabrication facilities.
Key Advantages
- Production-grade construction — 300-450kg frames built for multi-shift operation
- 100mm maximum capacity — DMM-900 handles the thickest structural plates
- Full 0°-90° angle range — Standard V-preps to near-vertical J-grooves
- Cold milling — No heat-affected zone, preserves material properties
- VFD spindle control — Optimize chip load for any material
Model Comparison
| Model | Thickness | Angle | Power | Weight | Best For |
|---|---|---|---|---|---|
| DMM-2070 | 5-80mm | 0-90° | 6.4kW | 300kg | Standard production |
| DMM-2070L | 5-80mm | 0-90° | 6.0kW | 320kg | With lifting provisions |
| DMM-900 | 5-100mm | 0-90° | 6.4kW | 450kg | Maximum thickness capacity |
| DMM-100L | 5-80mm | 0-90° | 6.0kW | 345kg | Heavy-duty with lifting |
Why Choose DMM Series?
Choose DMM when you need:
- Plates over 80mm thick (DMM-900)
- Continuous high-volume production
- Maximum machine stability and cut consistency
- Industrial-grade durability for demanding environments
Consider GL Series instead for:
- Workshop applications under 250kg weight limit
- Single-operator positioning requirements
- Moderate production volumes
- Budget-conscious projects
Customization Options
Every DMM machine can be configured to your requirements:
- Bevel Angle — Custom cutter angles manufactured to your welding specifications
- Capacity Range — Thickness range adjustable for specific material requirements
- Drive System — Electric, pneumatic, or hydraulic based on facility needs
Contact our engineering team to discuss your customization requirements.
Operating Notes
- Feed Speed Selection — Start conservative (150-250 mm/min), increase as cut stabilizes
- Material Considerations — Reduce speed 20-30% for stainless steel and hardened alloys
- Cutter Maintenance — Inspect blade edges before each shift; replace at first sign of wear
- Lifting Provisions — DMM-2070L and DMM-100L include integrated lifting points for crane positioning
